Description

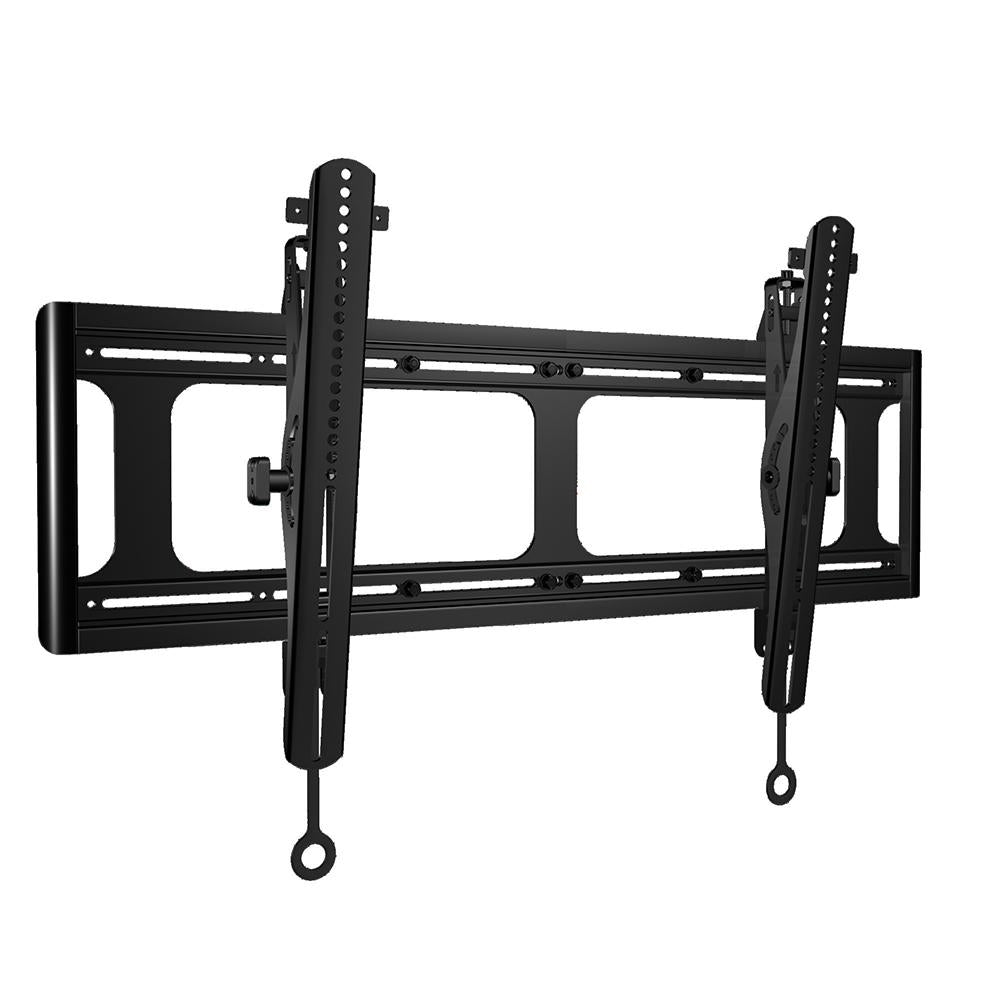

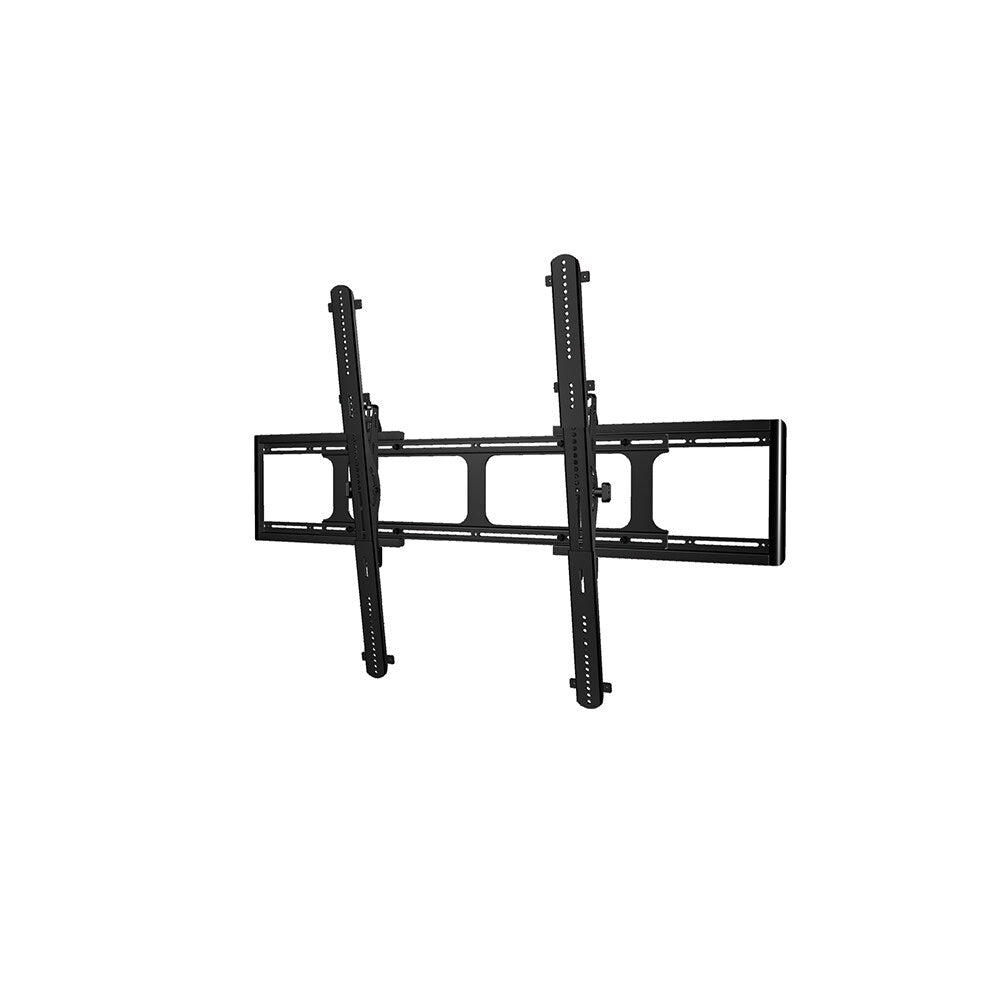

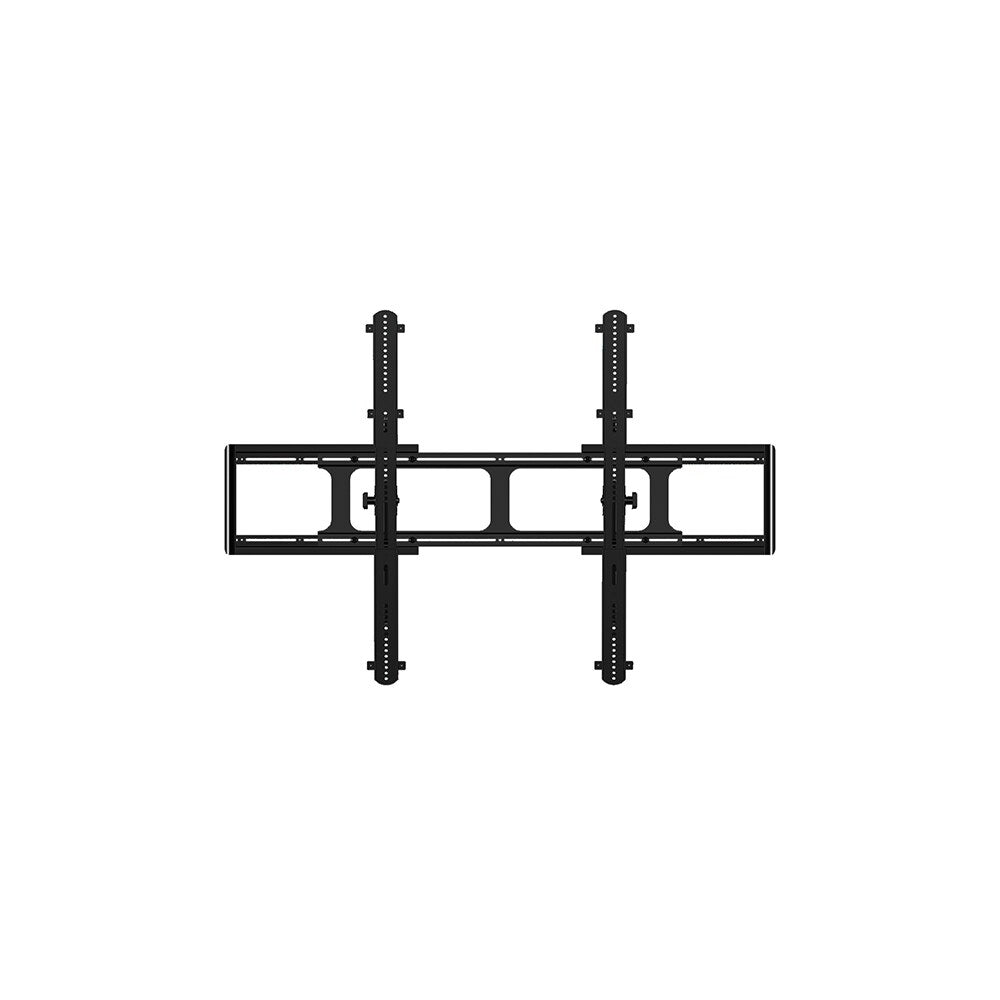

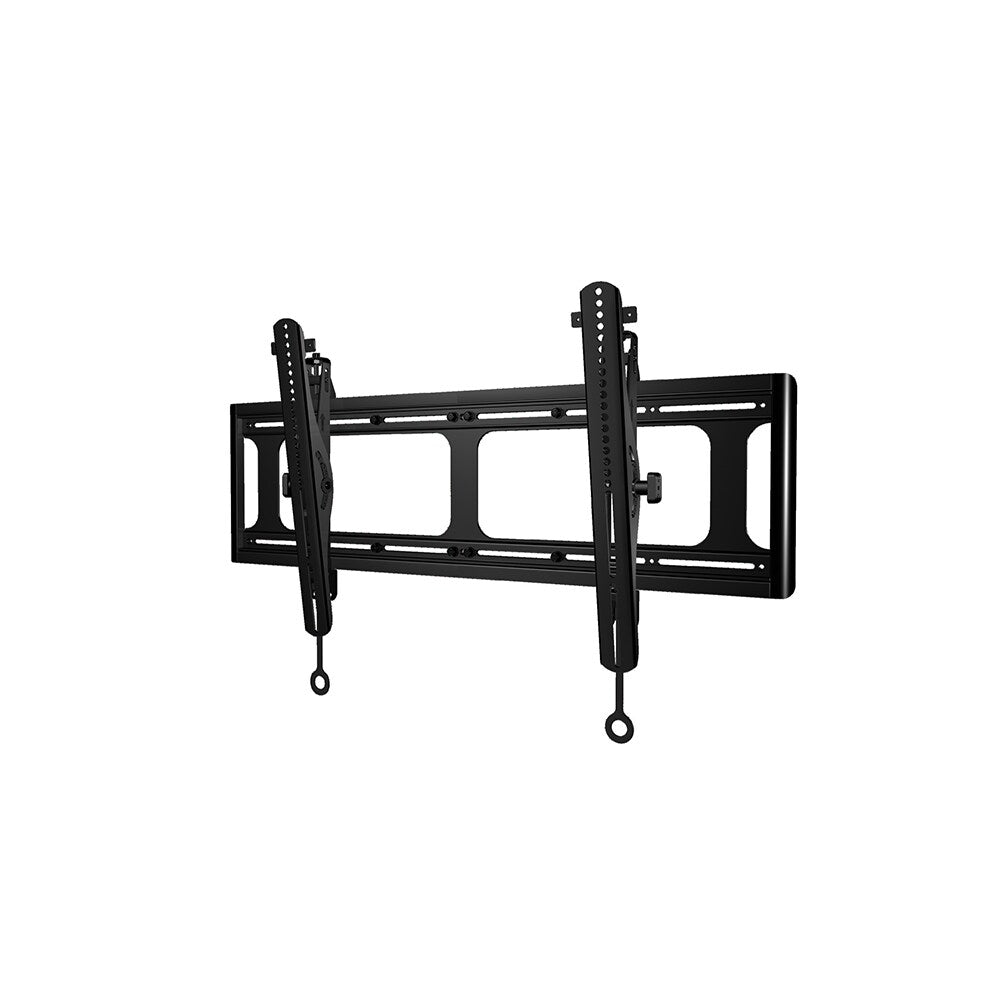

Sanus' Black CIXT1 is a tilting wall mount for 40" to 110" flat panel TVs. The Sanus Virtual Axis™ tilting system provides easy adjustment of viewing angle with just the touch of a finger. Whilst Pro Set Plus™ ensures TVs are always perfectly positioned after hanging.
Sanus' Black CIXT1 is a tilting wall mount for 40" to 110" flat panel TVs. The Sanus Virtual Axis™ tilting system provides easy adjustment of viewing angle with just the touch of a finger.
Pro Set Plus™ post installation height and levelling adjustments up to 2.54cm / 1" to ensure TVs are always perfectly positioned after hanging.
This tilting mount extends 14.48cm / 5.7" from the wall for the ultimate viewing angle and easy access to cables and gives you the best view from the floor or couch. Fingertip tilt allows for easy TV adjustments and the mount tilts the TV back for easy cable access. TVs can slide from side to side for perfect positioning on the wall and the safety tab provides a safe and easy connection you can hear.
The CIXT1 comes with extender brackets that easily attach to accommodate large hole patterns. Brackets are also compatible with CILT1 and CILL1 TV mounts from Sanus. The open wall plate design allows mounting directly over most wall boxes and electrical outlets, whilst the hgh quality quick release tabs instantly unlock the TV from the wall plate.
An optional padlock prevents the quick release tabs from releasing.
Specifications:
| Compatible With | 40" to 110" flat screen TVs |
| Finish | Black |
| Maximum TV Weight | 136.08kg / 300lb |
| Mounting Pattern Minimum VESA | 200 x 200 |
| Mounting Pattern Maximum VESA | 1100 x 800 |
| Tilts | +7/-10 |
| Minimum Depth from Wall | 6.5cm / 2.5" |
| Dimensions | Height: 44.53cm / 17.53" to 82.52cm / 32.49" Width: 84.91cm / 33.43" to 134.44cm / 52.93" Depth: 6.12cm / 2.41" |
| Weight | 9.5kg / 21lb |
| Included | Extender brackets that easily attach to accommodate large hole patterns |
Features:
- Extends 14.48cm / 5.7" from the wall for the ultimate viewing angle and easy access to cable
- New Pro Set Plus post install height and level adjustments allow for up to one full inch of height and level adjustment
- Open wall plate design allows mounting directly over most wall boxes and electrical outlets

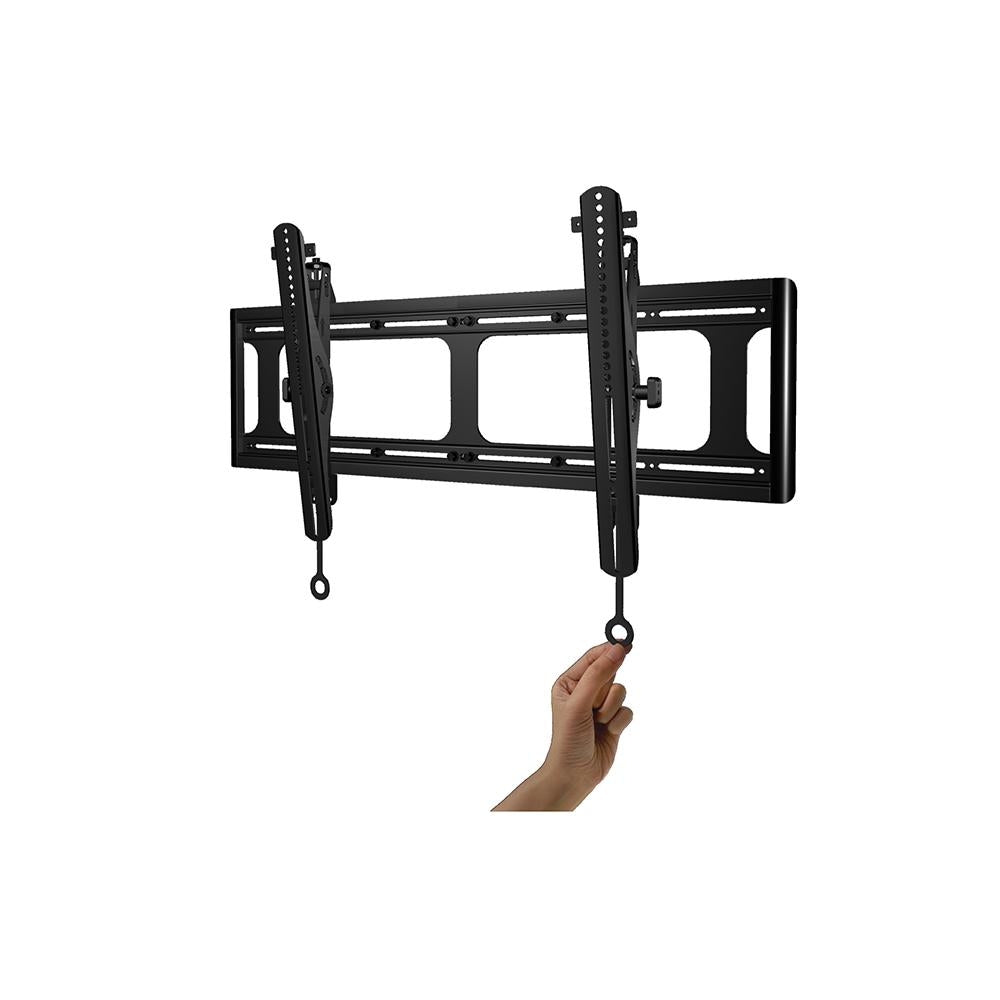

- Virtual Axis™ fingertip tilt allows for easy TV adjustments and quick access to cables
- Save time by using the levelling notch to hang the wall plate on a temporary nail while levelling the wall plate and marking holes to drill
- High quality quick release tabs instantly unlock the TV from the wall plate
- Optional padlock adds security
