Description
Description:

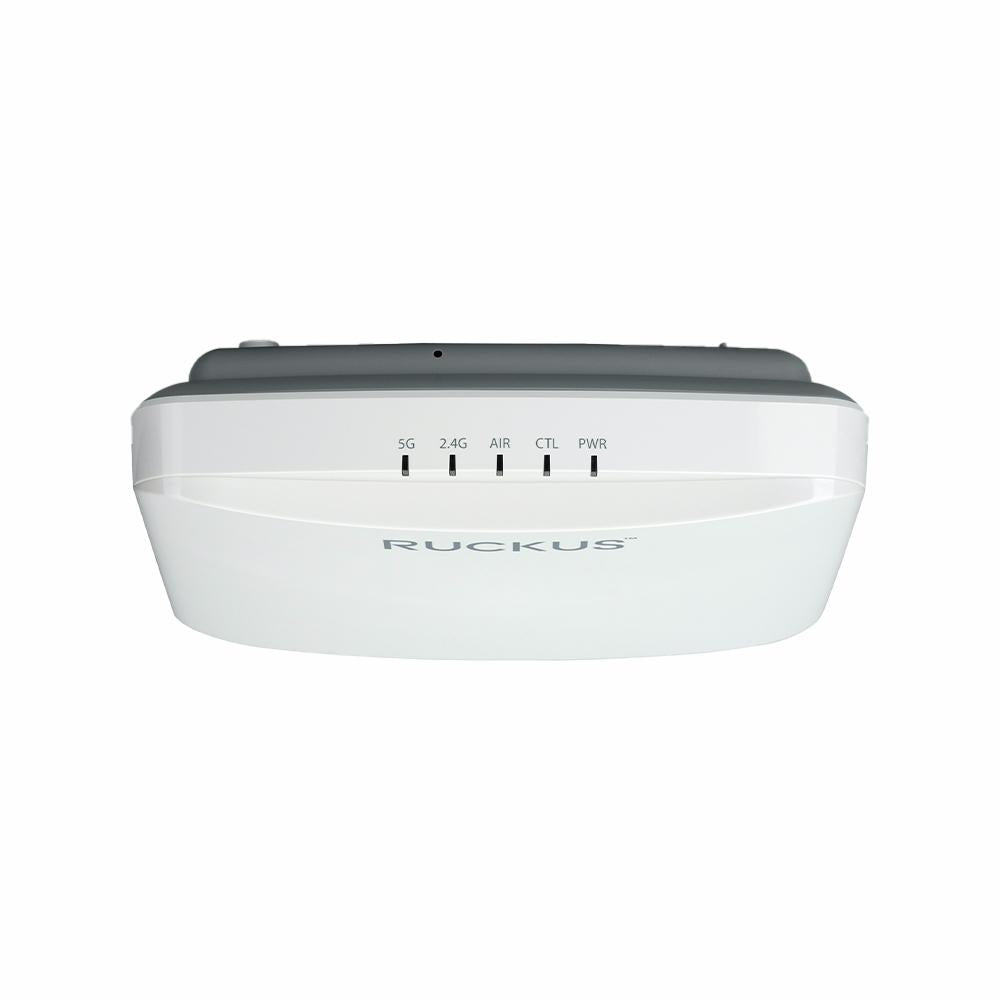

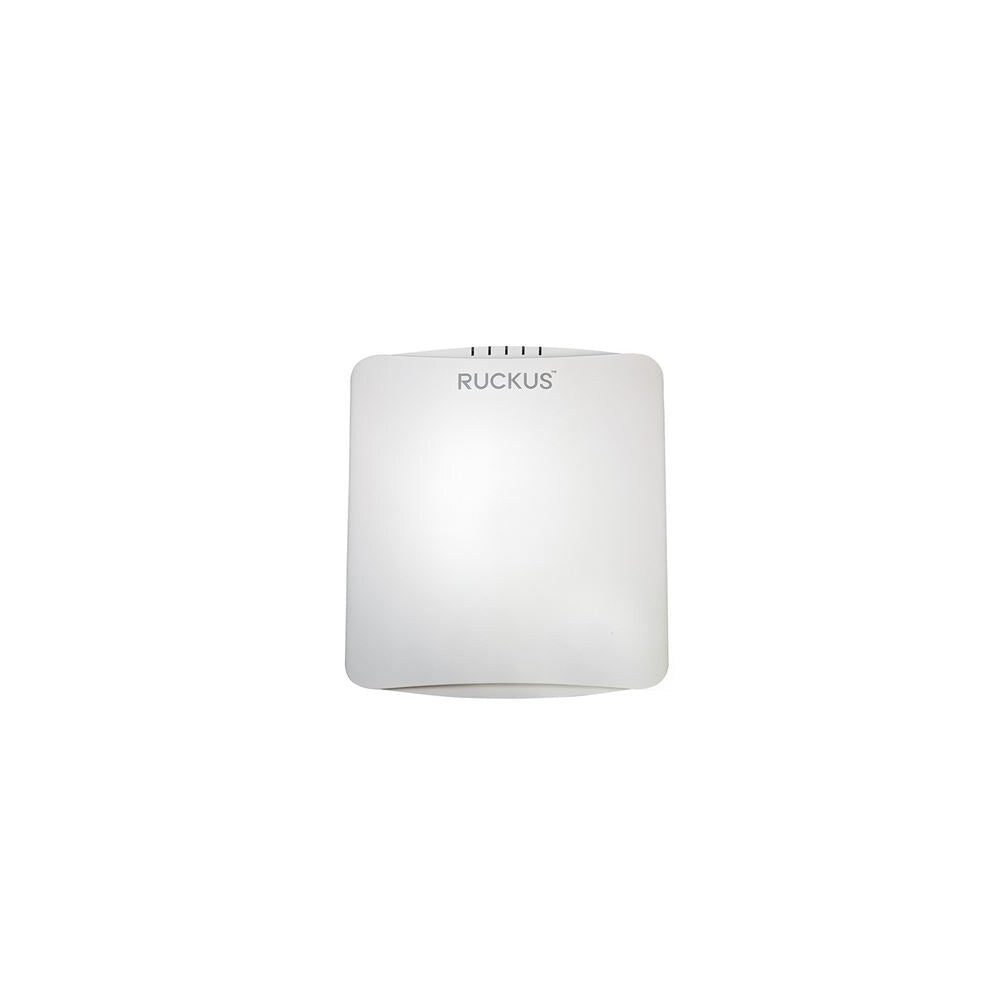

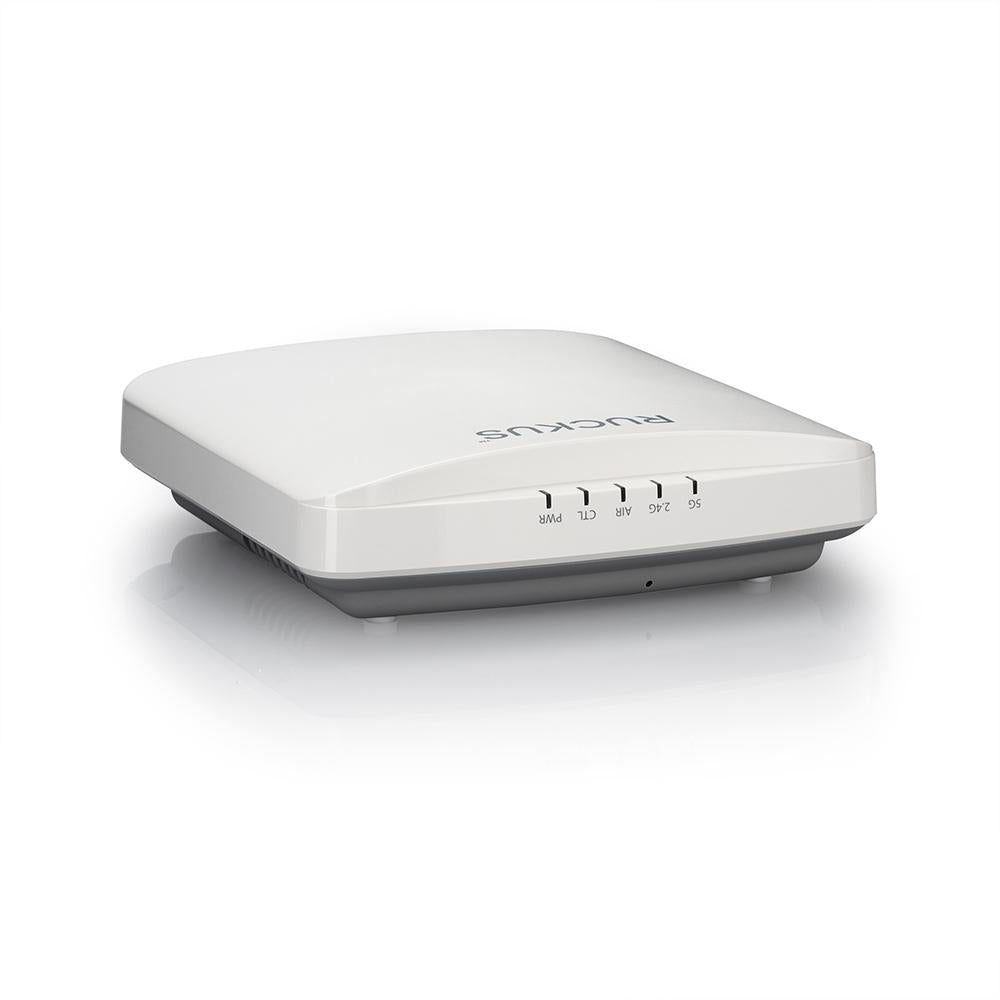

The R550 ZoneFlex access point from Ruckus with the latest Wi-Fi 6 802.11ax technology delivers the ideal combination of increased capacity, improved coverage and affordability in dense environments.
The R550 is a dual band and dual concurrent access point that supports 4 spatial streams of 2x2:2 in 2.4GHz and 5GHz. This unit supports peak data rates of up to 1774 Mbps and efficiently manages up to 512 clients connections.
As wireless requirements within companies are expanding beyond Wi-Fi with BLE, Zigbee and many other non Wi-Fi wireless technologies resulting in creation of network silos, this ZoneFlex access point and Ruckus portfolio provide businesses a unified platform to solve and eliminate network silos. The R550 has built in IoT radios with onboard BLE and Zigbee capabilities, it is also a converged access point that allows customers to seamlessly integrate any new wireless technologies with the pluggable IoT module.
The R550 is packed with Ruckus' patented technologies in addition to Wi-Fi 6 features such as OFDMA, MU-MIMO and TWT and is ideal for medium density deployments such as classrooms, residence halls, hallways and office spaces.
Features:
- Mitigating of interference and extend coverage with patented BeamFlex+™ adaptive antenna technology utilising several directional antenna patterns
- Connect more devices simultaneously with six MU-MIMO spatial streams and concurrent dual band 2.4/5GHz radios while enhancing device performance
- Converged Access Point allows customers to eliminate silo networks and unify Wi-Fi and non Wi-Fi wireless technologies into one single network by using built-in BLE and Zigbee
- Also expanding to any future wireless technologies
- ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels
- Manage the R550 from the cloud, with on premises physical or virtual appliances or without a controller
- Better Mesh Networking byreducing expensive cabling and complex mesh configurations with SmartMesh wireless meshing technology to dynamically create self forming and self healing mesh networks
- Support services beyond Wi-Fi with Ruckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine and SCI network analytics
Specifications:
| Antenna Gain | Up to 3 dBi |
| BeamFlex | Yes |
| Channel Fly | Yes |
| Concurrent Users | 512 |
| Controller Support | SmartZone Standalone ZoneDirector Unleashed |

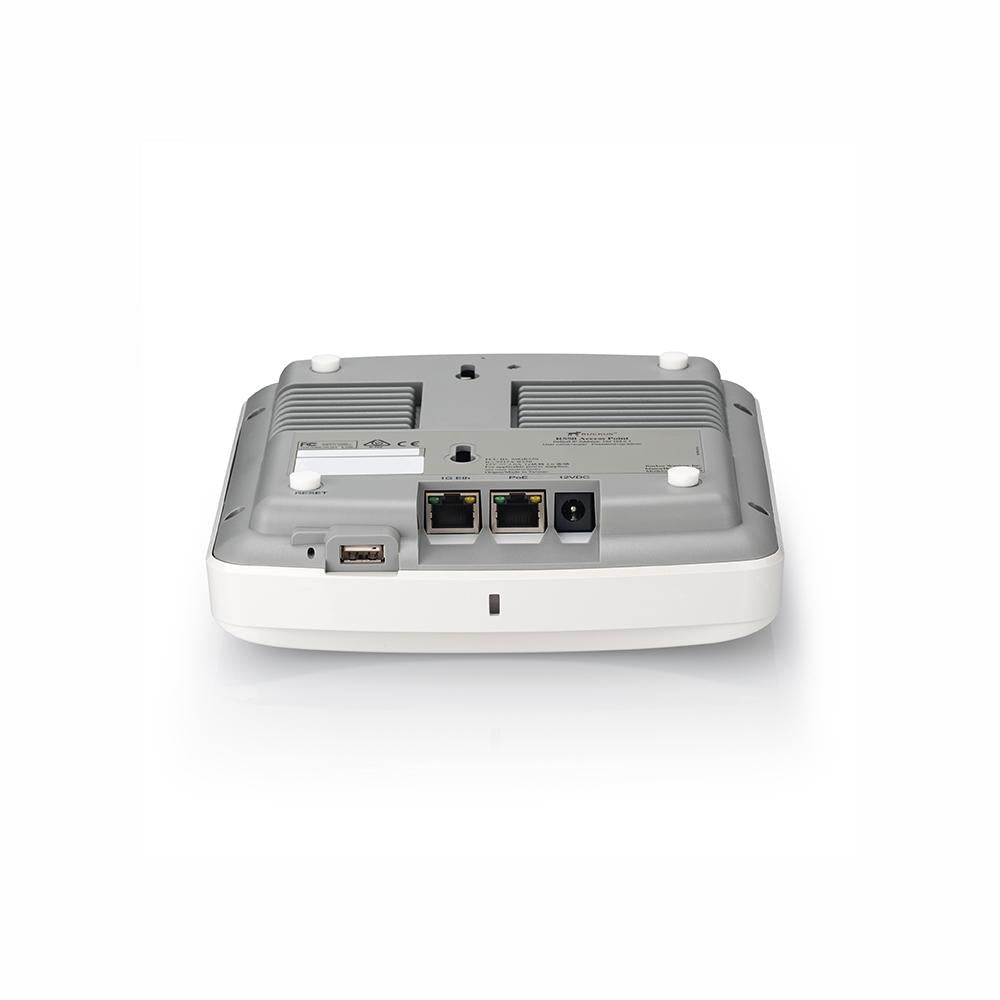

| Ethernet Ports | 2 x 1GbE |
| IoT Ready | Yes |
| PD-MRC | Yes |
| PHY Rate | 2.4GHz: Maximum 574 Mb/s 5GHz: Maximum 1200 Mb/s |
| Radio Chains: Streams | 2 x 2:2 (5 GHz) 2 x 2:2 (2.4 GHz) |
| SmartMesh | Yes |
| USB | USB 2.0 |
| Wi Fi Interface Standard | IEEE 802.11a/b/g/n/ac Wave 2/ax |
| Dimensions | Height: 4.78cm / 1.88" Width: 19.02cm / 7.49" Length: 17.6cm / 6.93" |
| Weight | 0.56kg / 1.24lb |
| Certifications | EN 60950-1 Safety EN 60601-1-2 Medical EN 61000-4-2/3/5 Immunity EN 50121-1 Railway EMC EN 50121-4 Railway Immunity IEC 61373 Railway Shock and Vibration EN 62311 Human Safety/RF Exposure UL 2043 Plenum WEEE and RoHS ISTA 2A Transportation |
User guides
Download User Guides:
Data Sheet R550
Ruckus Product Guide Brochure
Ruckus Accessory Guide
Access Points Look Up Guide
Ruckus Cloud Demo Guide
Technology Guide
Virtual SmartZone Essentials
Virtual SmartZone High Scale
Unleashed Portfolio
