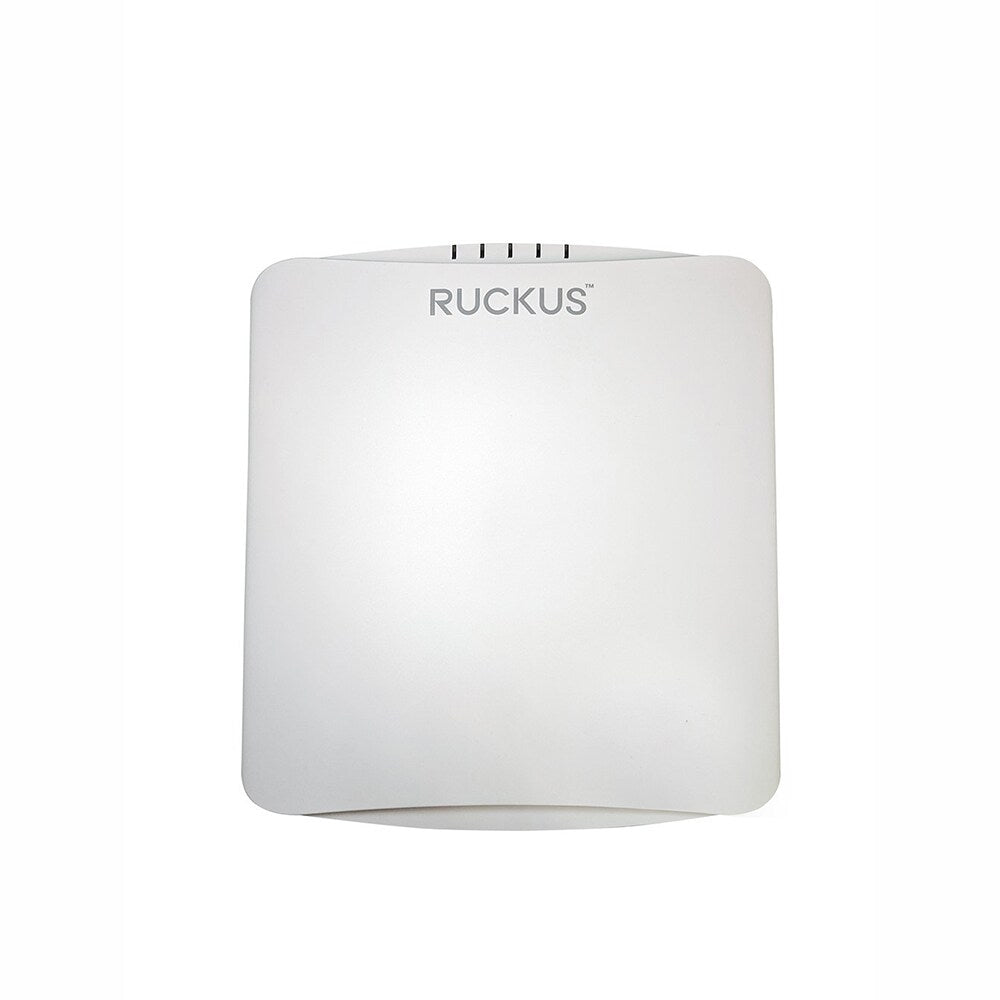

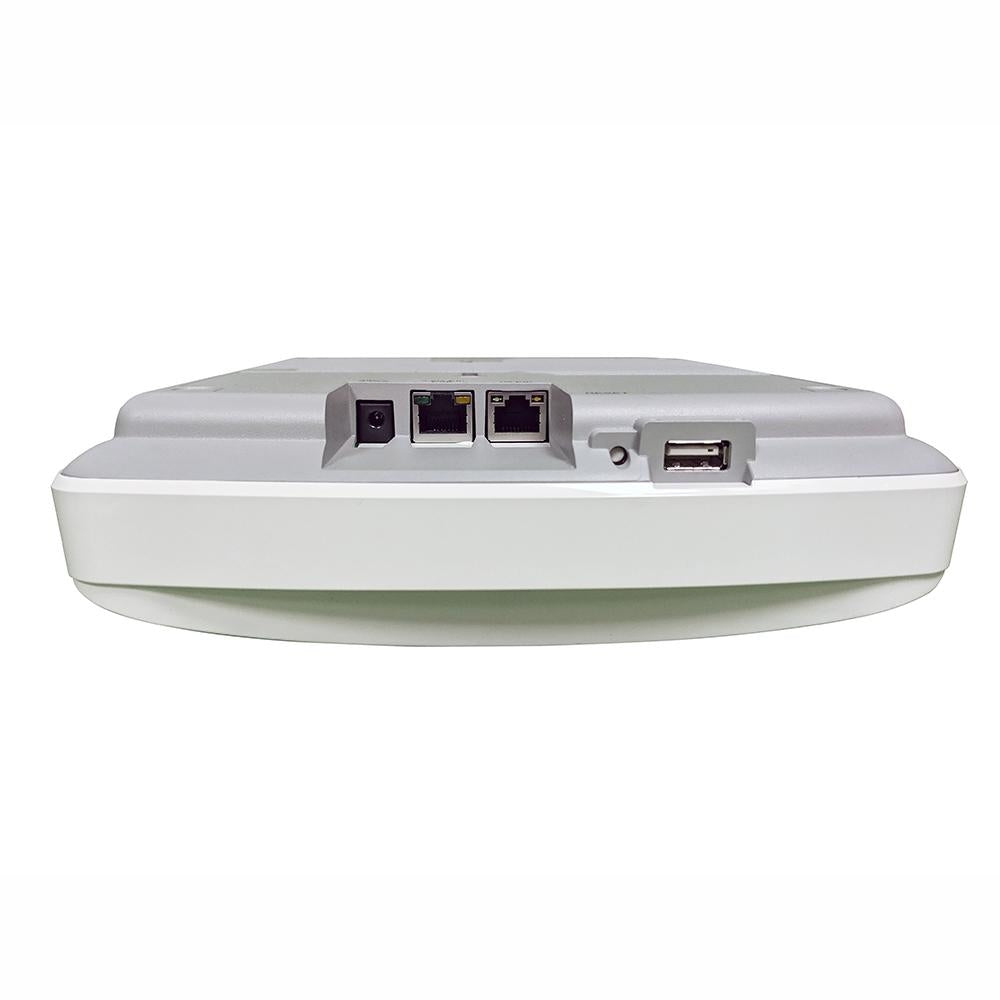

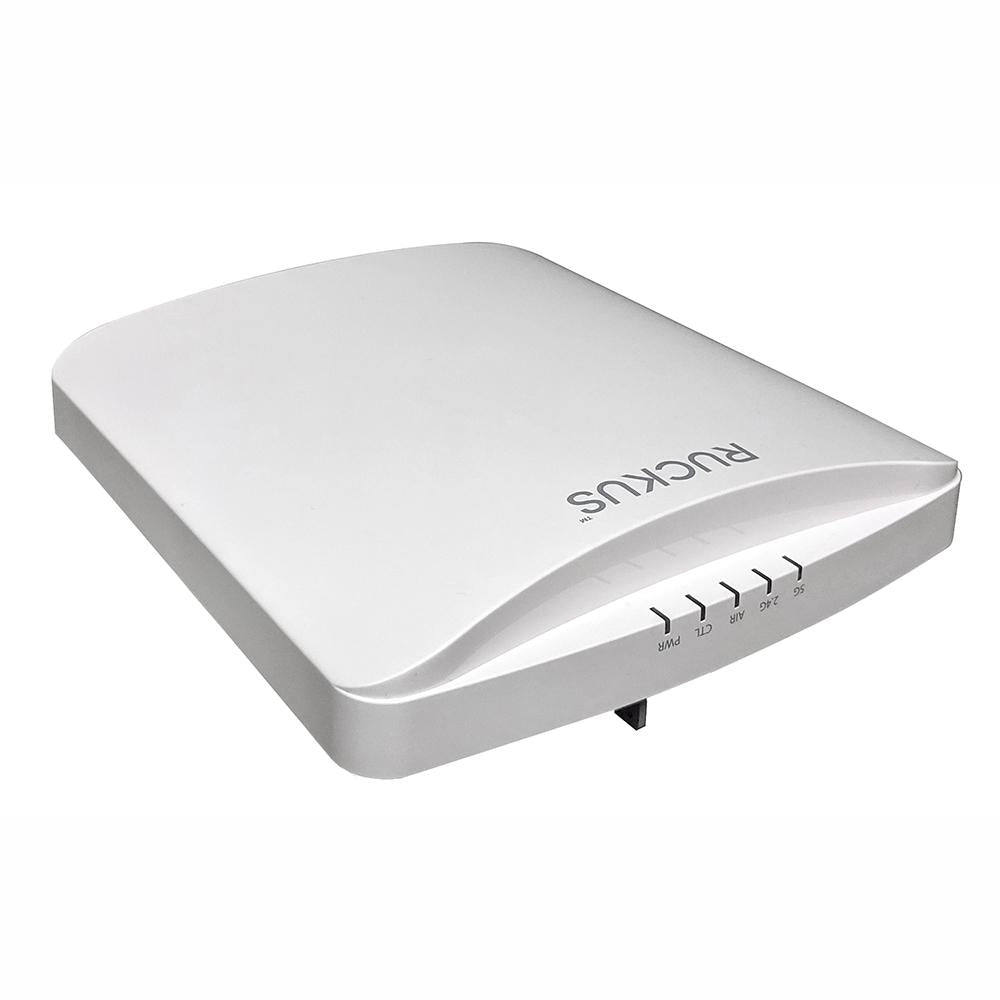

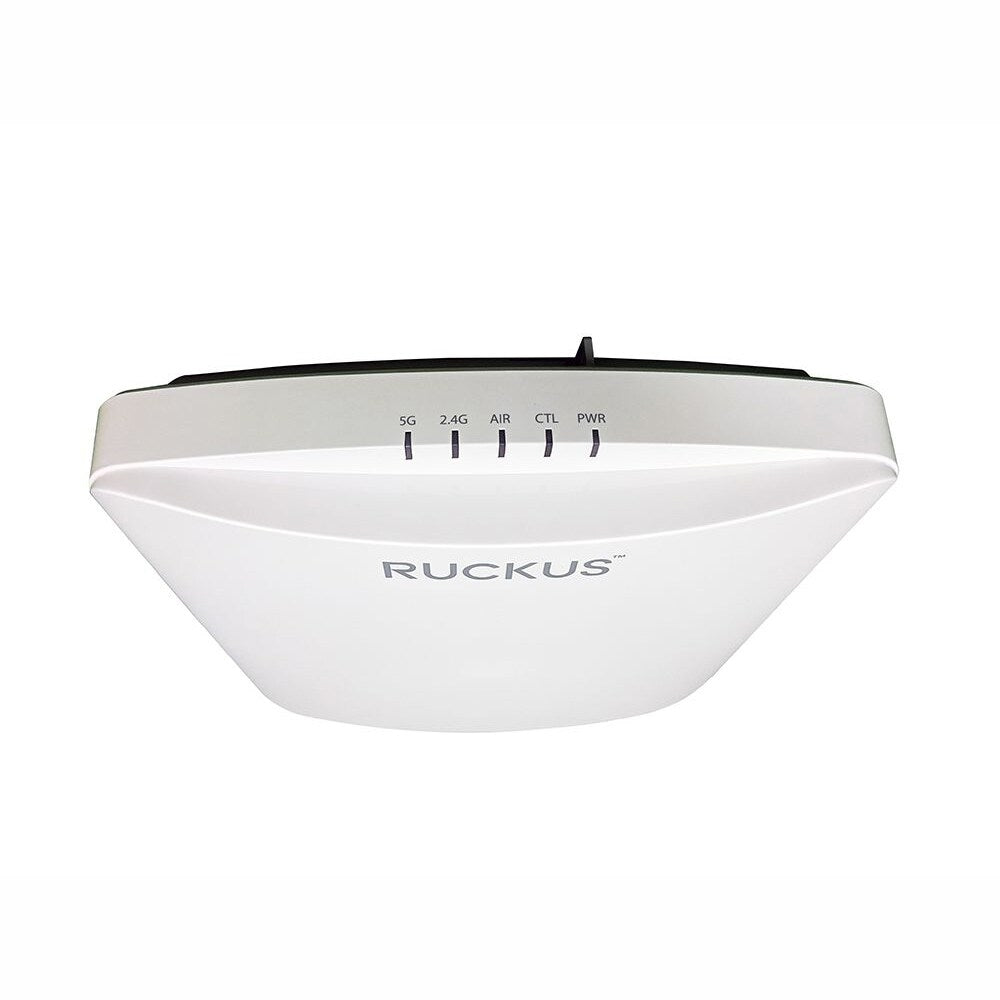

The Ruckus Unleashed R750-U is a high end dual band and dual concurrent Wi-Fi 6AP that supports 8 spatial streams of 4x4:4 in 5GHz and 4x4:4 in 2.4GHz.
It has OFDMA and MU-MIMO capabilities, efficiently manages up to 1024 client connections with increased capacity, improved coverage and performance in ultra high dense environments.
The R750-U is based on the latest Wi-Fi 6 standard and bridges the performance gap from gigabit to multi gigabit Wi-Fi in support of the high demand for better and faster Wi-Fi. This access point is the first ever Wi-Fi 6 AP to be granted Wi-Fi Certified 6 status by the Wi-Fi Alliance. As part of Wi-Fi Alliance's testbed, the R750-U validates other devices for Wi-Fi Certified 6 interoperability certification.
This R750-U makes it easy to deliver reliable, secure and high performance connectivity in transit hubs, auditoriums, conference centres and other high traffic indoor spaces. As the wireless requirements within enterprises are expanding beyond Wi-Fi with BLE, Zigbee and many other non Wi-Fi wireless technologies, companies need a unified platform to eliminate network silos. The Ruckus AP portfolio is equipped to solve these challenges through wireless convergence.
The R750-U is also easy to manage through Ruckus' physical and virtual cloud management options.
Features:
- Improve device performance by enabling more simultaneous device connections
- High density performance provides exceptional end user experience within large meeting halls, general enterprise spaces and large classrooms with the Ruckus Ultra High Density Technology Suite
- Converged access point allows customers to eliminate silo networks and unify Wi Fi and non Wi Fi wireless technologies into one single network by using built in BLE and Zigbee and also expanding to any future wireless technologies through the USB port
- Optimised multi Gigabit Wi Fi performance delivered using the built in 2.5GbE port to connect to multi Gigabit switches
- Manage the R750-U with on premise physical or virtual appliances and control auto provisioning for faster deployment and seamless firmware upgrades
- The latest Wi Fi security standard with WPA3 and receive enhanced protection from man in the middle attacks
- Support services beyond Wi-Fi with Ruckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine and SCI network analytics
Specifications:
| Antenna Patterns per Band | 4000+ |
| Antenna Gain | Up to 3 dBi |
| BeamFlex | Yes |
| ChannelFly | Yes |
| Concurrent Users | 1024 |
| Fibre Interface | Yes |
| IoT Ready | Yes |
| PD-MRC | Yes |
| PHY Rate | 2.4Ghz: Maximum 1148 Mb/s 5Ghz: Maximum 2400 Mb/s |
| Radio Chains : Streams | 4x4:4 |
| SmartMesh | Yes |
| USB | USB 2.0 |
| Wi-Fi Interface Standard | IEEE 802/11a/b/g/n/ac/ax |
| Dimensions | Height: 6.2cm / 2.4" Width: 20.6cm / 8.1" Length: 23.5cm / 9.3" |
| Weight | 1.01kg / 2.23lb |
| Certifications | EN 60950-1 Safety EN 60601-1-2 Medical EN 61000-4-2/3/5 Immunity EN 50121-1 Railway EMC EN 50121-4 Railway Immunity IEC 61373 Railway Shock and Vibration UL 2043 Plenum EN 62311 Human Safety/RF Exposure WEEE and RoHS ISTA 2A Transportation |
