Description

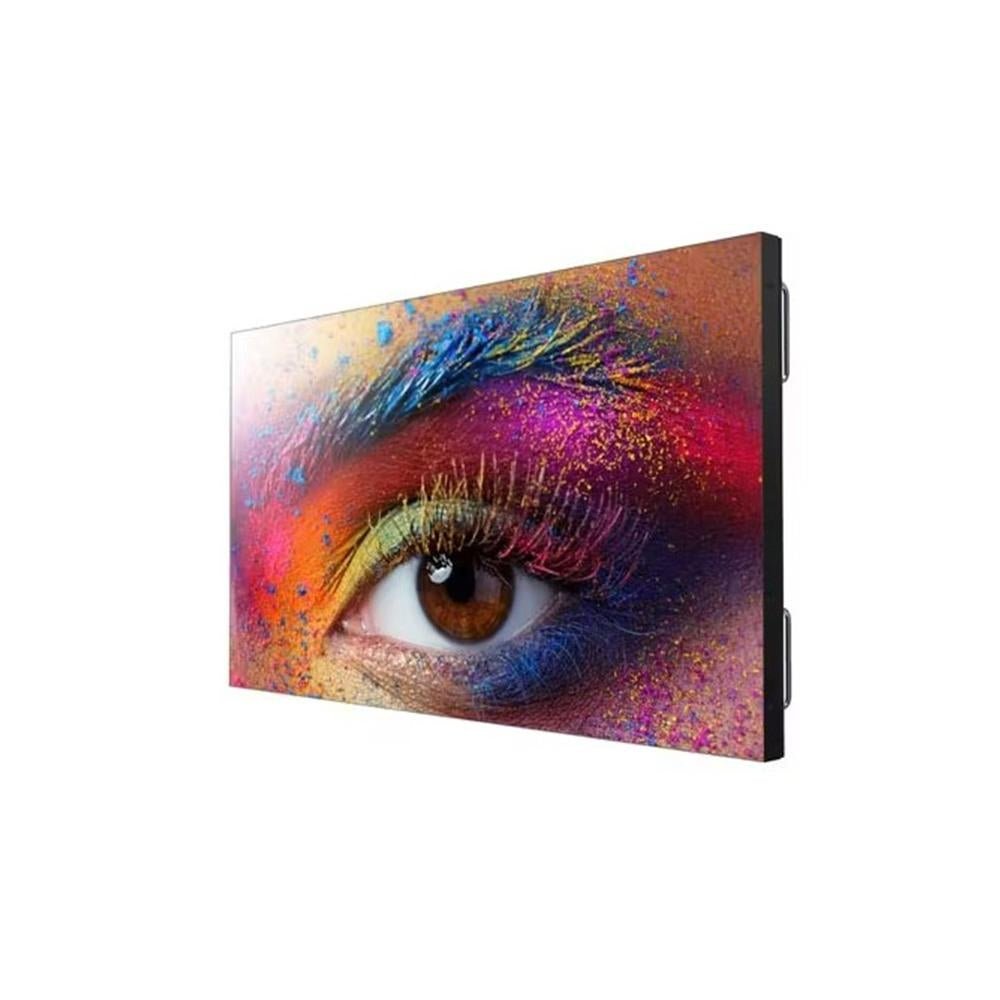

The Christie FHD554-X LCD video wall panel supports 4K UHD signals at 60Hz for superior image quality and enables streaming of 4K content. With the ultra narrow 3.5 mm combined bezel width, you get a near seamless display that doesn't interfere with viewing ability across your video wall.
The Christie FHD554-X LCD video wall panel supports 4K UHD signals at 60Hz for superior image quality and enables streaming of 4K content. With the ultra narrow 3.5 mm combined bezel width, you get a near seamless display that doesn't interfere with viewing ability across your video wall.
Each panel is factory calibrated and matched to ensure image uniformity across the entire video wall for fast and easy installation. This video wall delivers commercial grade LCD with LED backlight and high bandwidth input supports 4K UHD resolution at 60Hz for less flicker and better video quality.
An OPS slot allows for easy performance upgrades for control rooms or media players for digital signage. Additional built in processing includes video wall scaling, bezel compensation, staggered power up and more.
DisplayPort 1.2 output allows for 4K UHD at 60Hz sources to be daisy chained up to 25 panels and with built in scaling 4K signals across video walls up to 10x10 configurations are supported.
500Nit brightness and 24/7 operation makes the FHD554-X the perfect choice for control and security monitoring applications, with support for both portrait and landscape orientation to cover all installation requirements.
Specifications:
| Screen Size | 55" |
| Ratio | 16:09 |
| Native Resolution | 1920x1080 |
| Backlight | Direct lit LED |
| Bezel Size | 3.5mm combined |
| Brightness | 500 nits (cd/m2) |
| Display Orientation | Portrait and landscape |
| Runtime | 24/7 |
| Signal Inputs | 2 x HDMI Version 2 HDCP 2.2 |
| Signal Outputs | DisplayPort: Daisy chains DisplayPort, HDMI and DVI inputs up to 25 panels from one source |
| Control Inputs | RS-232 via D-Sub9 Ethernet via RJ45 RS485 via RJ45 Keypad IR window IR wire extender |
| Power Consumption | 145W typical 205W maximum <= 0.5W standby |
| VESA Fixing | 400 x 400mm M8 |
| Dimensions | Without handle: Height: 684.4mm / 26.9" Width: 1213.6mm / 47.8" Depth: 98.7mm / 3.9" |
| Weight | 29kg / 63.9lb |
Features:
- 500 nits ideal for control room applications
- Ultra narrow 3.5mm combined bezel width
- Portrait or landscape orientation
- Commercial grade LCD with LED backlight
- High bandwidth input supports 4K UHD resolution at 60Hz for less flicker and better video quality
- HDMI 2.0 and DisplayPort 1.2 inputs with HDCP 2.2 compliance enable streaming of 4K content
- DisplayPort 1.2 output allows for 4K UHD at 60Hz sources to be daisy chained up to 25 panels
- Built in scaling supports 4K signals across video walls up to 10x10 configurations
- OPS slot for flexible integration of various sources
User guides
Download User Guides:
Data Sheet
Technical Drawing
LCD Videowall Brochure
User Manual
Digital Signage Line Comparison Guide
