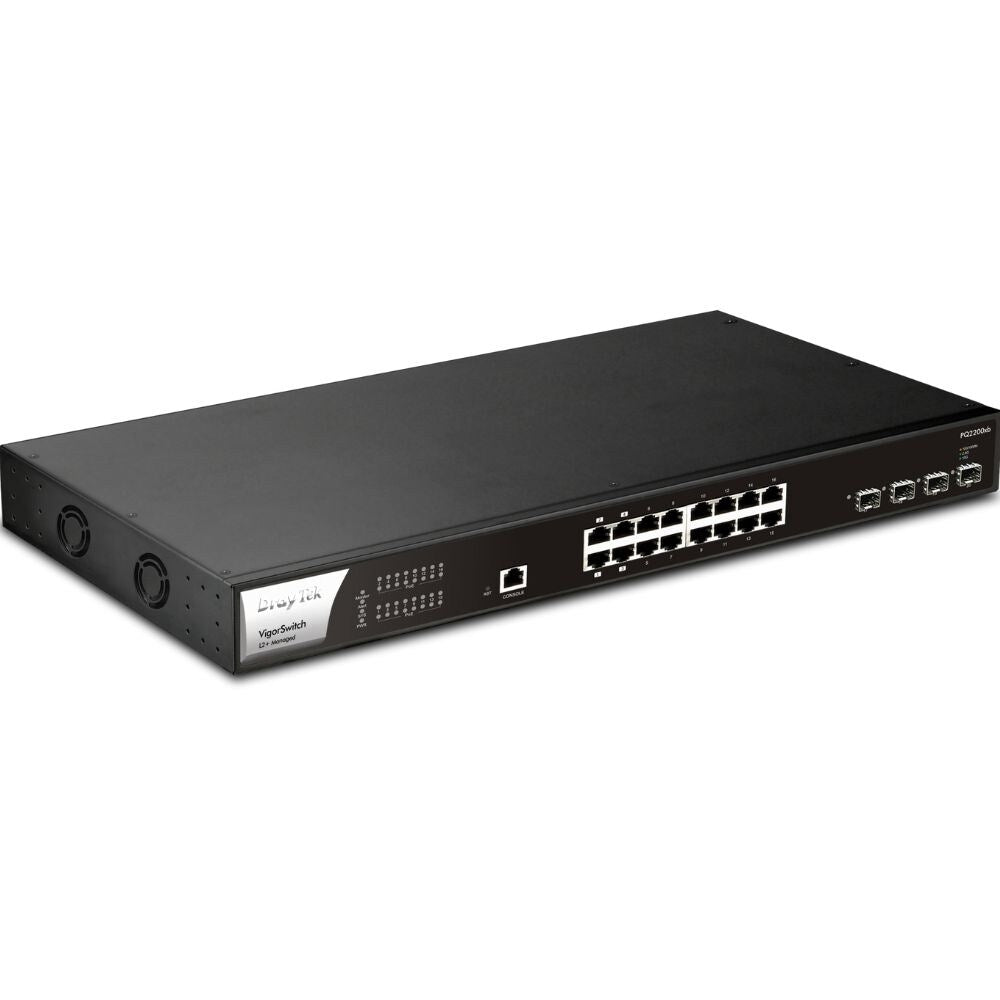

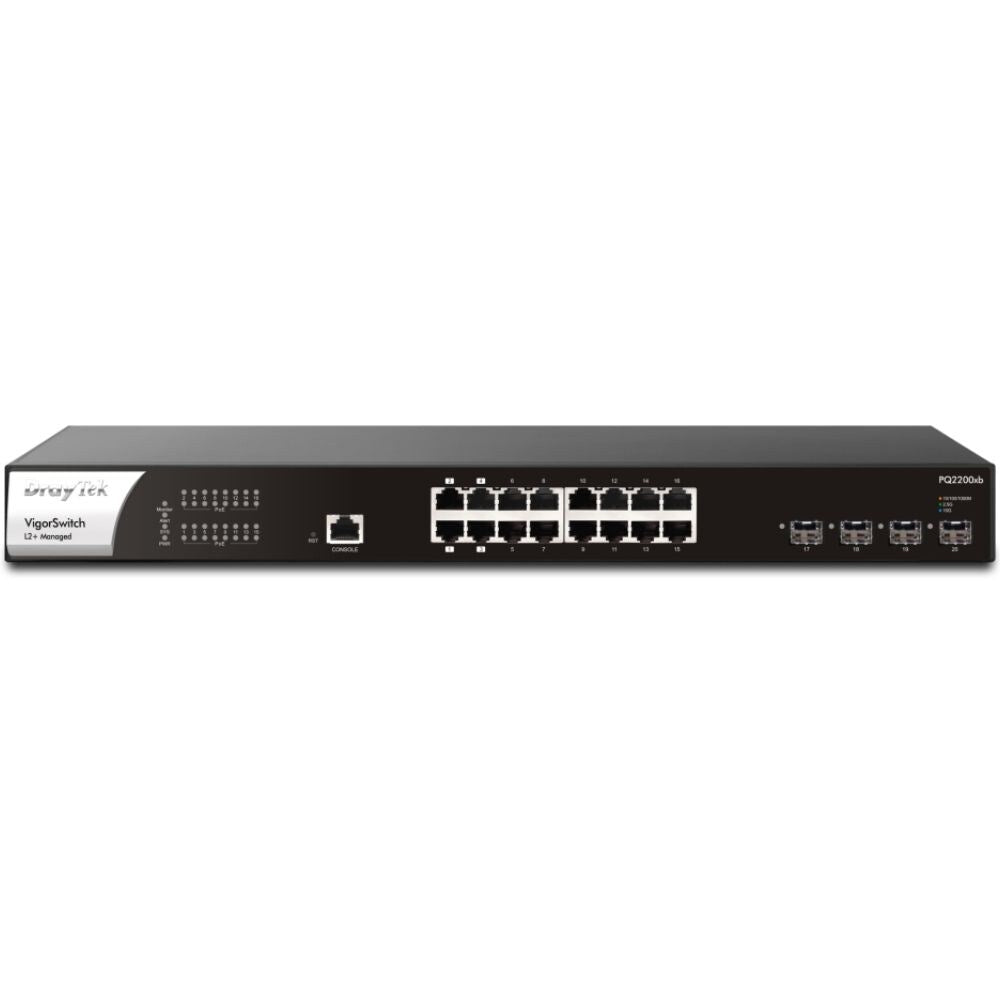

DrayTek 16 Port 2.5G Switch With 4 Ports PoE++, 12 Ports PoE+, 400W and 4 SFP+ Ports

DrayTek 16 Port 2.5G Switch With 4 Ports PoE++, 12 Ports PoE+, 400W and 4 SFP+ Ports 1

DrayTek VigorSwitch PQ2200xb 16 Port 2.5G Switch With 4 Ports PoE++, 12 Ports PoE+, 400W and 4 SFP+ Ports

Name: DrayTek VigorSwitch PQ2200xb 16 Port 2.5G Switch With 4 Ports PoE++, 12 Ports PoE+, 400W and 4 SFP+ Ports
Brand: Draytek
SKU: DRA-PQ2200XB
Price: 3224.0 AED
Availability: InStock

Dhs. 3,224.00

Out of stock

Add to favourites Delete favourites

Shipping Policy

Shipping Policy for AV Pros

Effective Date: March 19, 2025

At AV Pros, we are committed to providing you with a seamless shopping experience, including fast and efficient shipping. This Shipping Policy outlines the details regarding our shipping options, delivery times, and related information.

1. Shipping Options

We are pleased to offer the following shipping options for all orders placed through our website:

1.1. ⁠Free Tracked Shipping:
We provide free 2-3 day tracked shipping on all in-stock items shipped across the UK. Once your order has been processed and shipped, you will receive a tracking number via email so you can monitor your shipment's progress.

1.2. Express Next Day Shipping:
For faster delivery, we offer an express next day shipping option for a fee of £35 per order. Orders must be placed before 12 PM to qualify for next day delivery. If your order is placed after this time, it will be dispatched the following business day for delivery the next day.

2. Processing Times

•⁠ ⁠Orders are typically processed within 1-2 business days after payment confirmation.
•⁠ ⁠Special orders may take up to 7 business days to process.⁠ ⁠

•⁠ Please note that processing times may vary during peak periods or holidays, and we appreciate your understanding.

•⁠ ⁠Delivery times may be extended due to courier delays or other circumstances beyond our reasonable control.

3. Delivery Times

•⁠ ⁠Standard Free Shipping: Delivery within 2-3 business days.
•⁠ ⁠Express Shipping: Next business day delivery for orders placed by 12 PM. Orders placed on weekends or holidays will be processed the next business day.

4. Shipping Restrictions

•⁠ ⁠All shipping services are available only within the mainland UK.
•⁠ ⁠Unfortunately, we currently do not offer international shipping or delivery to remote locations or islands.

5. Shipping Costs

•⁠ ⁠Standard Free Tracked Shipping: £0 on all in-stock items across the UK.
•⁠ ⁠Express Next Day Shipping: £35 per order, applicable only when chosen at checkout.

6. Tracking Your Order

Once your order has shipped, you will receive an email with shipping details, including a tracking number. You can use this tracking number to monitor your order's journey until it reaches your door.

7. Lost or Damaged Shipments

In the event that your order is marked as delivered but not received, or if it has arrived damaged, please contact our customer service team within 48 hours of delivery at info@avpros.co.uk or call us at 020 3355 5067. We will work with you to resolve the issue promptly.

8. Contact Us

If you have any questions or concerns regarding our shipping policy or your order, please do not hesitate to reach out to our customer service team at info@avpros.co.uk or call us at 020 3355 5067.

We appreciate your business and strive to provide you with the best shipping experience possible. Thank you for choosing AV Pros!

Estimated Delivery: Feb 04 - Feb 08

Standard Delivery: 2-3 Days.
Express Delivery: Next day when purchased before 12pm.

Pay Now or Later — Your Choice.

Description
User guides

Description:

VigorSwitch PQ2200xb is a 2.5 Gigabit L2+ Managed switch with 4 PoE++ 2.5GbE ports, 12 PoE+ 2.5GbE ports (total of 400W output) with 4 additional independent SFP+ 10Gbps interfaces. Ideal for usage with devices where there are throughput demands beyond 1Gbps such as PoE Wi-Fi 6 access points, high bandwidth video or network attached storage.

The PQ2200XB provides power through Ethernet to the PoE enabled 2.5 Gigabit LAN ports. Up to 90W (PoE++) can be delivered to the each of the first 4 dedicated Ethernet ports. PoE scheduling and monitoring features ensure your PoE devices are powered and working

With Supported layer 3 features such as a DHCP Server and VLAN Routing help with network stability and efficiency. The VigorSwitch PQ2200xb can be managed in a standalone mode or provisioned and monitored through the VigorACS management platform or a DrayTek Vigor router's Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reducing the setup time required for a complex network, with VLANs spanning multiple switches

With Voice VLAN and Surveillance VLAN, the VigorSwitch PQ2200xb simplifies the setup of connected IP Phones and IP Cameras. Move around ports on the switch without having to manually reconfigure VLAN and QoS settings each time, instead the switch will auto-assign VLAN tags and Quality of Service to IP Phones and IP Cameras, ensuring that each device remains on the correct network and that essential Voice and Video data is prioritised on the network.

Protect your network against unauthorised access and network problems with 802.1X port authentication, IP Conflict Prevention, DHCP Snooping, IP Source Guard and Access Control List.

Features:

16 x RJ-45 multi Gigabit Ethernet Ports (2500/1000/100/10) with PoE (4 PoE++ / 12 PoE+)
4 x SFP+ 10GbE Ports for uplink / fibre
Console port
PoE (Power over Ethernet) for IP phones, wireless access points, IP cameras etc.
400 Watt PoE budget
802.1q VLANs with Dynamic MAC based, Voice and Surveillance VLAN
VLAN Routing and Static Route with DHCP server / relay
QoS for Application traffic prioritisation
Access Control List (ACL)
Port Mirroring and Link Aggregation
IGMP Snooping and Querying
IPv4 and IPv6 support with IP Conflict Prevention
Centrally managed or standalone operation

Specifications:

10/100/1000/2500 RJ45 Ports	16
Uplink Ports	4 x SFP+
PoE Power	400W
PoE+ Enabled Ports 802.3af/at	12
PoE++ Enabled Ports 802.3af/at/ab	4
PoE+ Power and Voltage	240W 5V
PoE+ Max Power Per Port	30W
PoE++ Max Power Per Port	60W
Throughput	160 Gbps
Forwarding Rate in MPPS (64 Byte Packets)	119.04
Fan	1
Switch Management	VigorACS Cloud Management Central Switch Management for Vigor Routers
Switch Management Interface	Console Cable
Power Supply	100 to 240V
Temperature	Operating: 0°C / 32°F to 50°C / 122°F Storage: -20°C / -04°F to 70°C / 158°F
Rack Size	1U
Dimensions	Height: 44mm / 1.73" Width: 440mm / 17.32" Depth: 281mm / 11.69"
Weight	4.3kg / 9.48lb
Included	UK power lead Rack mount fittings Console cables

Download User Guides:

Datasheet

DrayTek Data Book

Quick Start Guide

Security Best Practise White Paper
